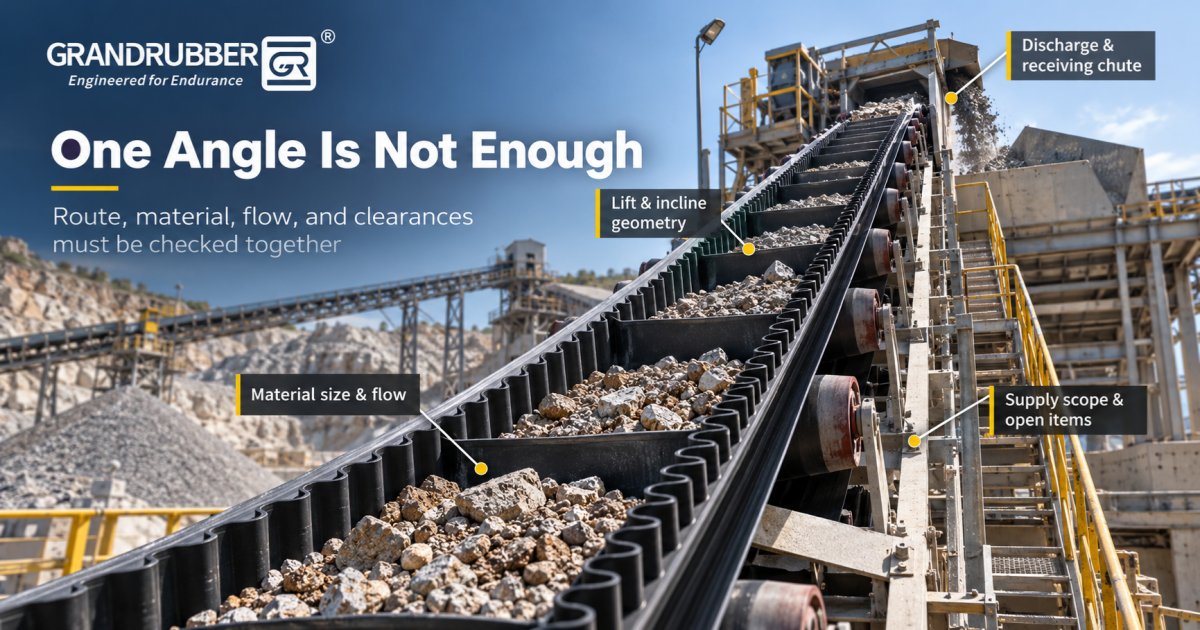

Review the complete carrying and return route before fixing the base belt, sidewalls or cleats. Mark the loading and discharge points, lift, inclines, transitions, pulleys and available clearances. Add the material condition and required flow. These inputs allow a proposed assembly to be checked against the conveyor; belt width and one incline angle do not define a complete sidewall belt specification.

Start with a route sketch that people can check

Use a side elevation and a plan view where the route changes direction or space is restricted. Label each loading point, discharge point, transition, pulley and deflection wheel. State which dimensions come from an approved drawing, which were measured on site and which remain unknown. An old drawing is a starting reference, not proof that the present conveyor still matches it.

For a replacement, show the return run as well as the loaded run. Sidewalls and cleats travel through the complete loop. A replacement that resembles the old belt can still require review where components pass close to supports, guards or structure. Obtain measurements and photographs through the site's approved inspection procedure; do not approach moving equipment to collect them.

Connect every route feature to a confirmation item

Describe the material before discussing larger profiles

Include the material name, normal and maximum lump size, bulk density if known, moisture or stickiness, temperature condition and whether the feed is steady or intermittent. Give the required capacity and belt speed with their units and indicate whether they are measured operating values or proposed design values.

A request for more capacity should not become an instruction to fit taller sidewalls or cleats without further checks. Pocket dimensions, material behavior, loading, speed, route geometry and discharge must be considered together. Exact profile sizes and operating limits need a matched technical proposal, not a general selection article.

Separate fixed site conditions from items open to review

For each interface, state whether it must remain unchanged, may be redesigned or still needs verification. For example, an existing pulley location may be fixed while a proposed cleat profile remains open to review. Ask the supplier to identify assumptions and deviations rather than silently treating either condition as final.

Keep the supply boundary clear. A belt assembly quotation does not automatically include conveyor redesign, installation, site splicing or commissioning. Record the responsible party for the route drawing, component layout, splice design and site acceptance before ordering.

Send enough information for the first review

Start with a labeled route sketch, material description, required flow and clear photographs of the loading, discharge and return areas. For a replacement, add the existing belt marking, overall dimensions, sidewall and cleat measurements, splice arrangement and failure history. If the drawing and field measurements disagree, send both and mark the difference. A short list of explicit unknowns is more useful than a complete-looking form filled with assumed values.

GRAND RUBBER supplies corrugated sidewall conveyor belts. Send your route and material information to info@grandrubbers.com with the requested supply scope. Use the enquiry to establish which specification items still require confirmation; final configuration and any engineering or site-service scope must be agreed separately.

Route Review FAQ

Is one incline angle enough for an initial quotation

It helps describe the duty but does not define the whole route. Include the lift, loading and discharge locations, transitions, pulley arrangement and return path. Missing details can remain open for preliminary discussion, but they should be listed before the offer becomes an order specification.

What can I provide if there is no current conveyor drawing

Provide a dated sketch with safely measured dimensions and labeled photographs. Identify the existing belt and components where possible. Mark unmeasured clearances or uncertain geometry as unknown; photographs alone do not establish those dimensions.

Can the old belt configuration be copied for a replacement

Use it as a reference, then check whether the material, feed, route or operating requirement has changed. Record existing damage and known contact points. Copying the old configuration does not confirm that it was suitable or that the present conveyor is unchanged.
